PIConsole Class Reference

Console output class. More...

Inheritance diagram for PIConsole:

Public Types
enum	Format {   Normal = 0x01, Bold = 0x02 , Underline = 0x10, Blink = 0x20,   Inverse = 0x40, Black = 0x100, Red = 0x200, Green = 0x400,   Yellow = 0x800, Blue = 0x1000, Magenta = 0x2000, Cyan = 0x4000,   White = 0x8000, BackBlack = 0x10000, BackRed = 0x20000, BackGreen = 0x40000,   BackYellow = 0x80000, BackBlue = 0x100000, BackMagenta = 0x200000, BackCyan = 0x400000,   BackWhite = 0x800000, Dec = 0x1000000, Hex = 0x2000000, Oct = 0x4000000,   Bin = 0x8000000, Scientific = 0x10000000, SystemTimeSplit = 0x20000000, SystemTimeSeconds = 0x40000000 }
	Variables output format. More...
enum	Alignment { Nothing, Left, Right }
	Column labels alignment. More...
Public Types inherited from PIThread
enum	Priority {   piHighest, piHigh, piNormal, piLow,   piLowerst }
	Priority of thread. More...

Public Member Functions
	PIConsole (bool startNow=true, KBFunc slot=0)
	Constructs PIConsole with key handler "slot" and if "startNow" start it.

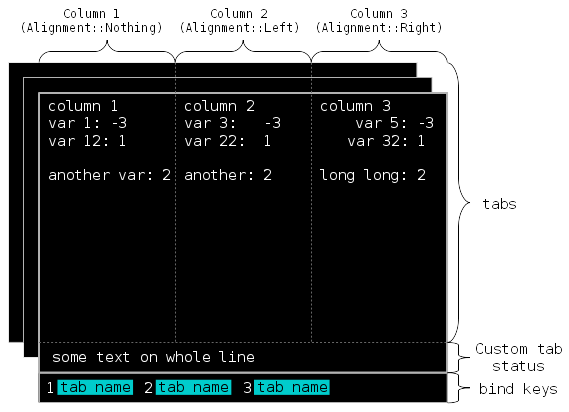

void	addString (const PIString &name, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" string "name" with format "format".
void	addVariable (const PIString &name, const PIString *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const char *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const bool *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const short *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const int *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const long *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const llong *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const uchar *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const ushort *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const uint *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const ulong *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const ullong *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const float *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const double *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const PISystemTime *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".
void	addVariable (const PIString &name, const PIProtocol *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format". More...
void	addVariable (const PIString &name, const PIDiagnostics *ptr, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format". More...
void	addBitVariable (const PIString &name, const void *ptr, int fromBit, int bitsCount, int column=1, PIFlags< PIConsole::Format > format=PIConsole::Normal)
	Add to current tab to column "column" bits field with label "name", pointer "ptr" and format "format".
void	addEmptyLine (int column=1, uint count=1)
	Add to current tab to column "column" "count" empty lines.
uint	tabsCount () const
	Returns tabs count.
PIString	currentTab () const
	Returns current tab name.
int	addTab (const PIString &name, char bind_key=0)
	Add new tab with name "name", bind key "bind_key" and returns this tab index.
void	removeTab (uint index)
	Remove tab with index "index".
void	removeTab (const PIString &name)
	Remove tab with name "name".
bool	setTab (uint index)
	Set current tab to tab with index "index", returns if tab exists.
bool	setTab (const PIString &name)
	Set current tab to tab with name "name", returns if tab exists.
bool	setTabBindKey (uint index, char bind_key)
	Set tab with index "index" bind key to "bind_key", returns if tab exists.
bool	setTabBindKey (const PIString &name, char bind_key)
	Set tab with name "name" bind key to "bind_key", returns if tab exists.
void	clearTabs (bool clearScreen=true)
	Remove all tabs and if "clearScreen" clear the screen.
void	addCustomStatus (const PIString &str)
	Set custom status text of current tab to "str".
void	clearCustomStatus ()
	Clear custom status text of current tab.
Alignment	defaultAlignment () const
	Returns default alignment.
void	setDefaultAlignment (Alignment align)
	Set default alignment to "align".
void	setColumnAlignment (int col, Alignment align)
	Set column "col" alignment to "align".
void	setColumnAlignmentToAll (Alignment align)
	Set all columns of all tabs alignment to "align".
void	enableExitCapture (char key= 'Q')
	Directly call function from PIKbdListener.
void	disableExitCapture ()
	Directly call function from PIKbdListener.
bool	exitCaptured () const
	Directly call function from PIKbdListener.
char	exitKey () const
	Directly call function from PIKbdListener.
Public Member Functions inherited from PIThread
	PIThread (void *data, ThreadFunc func, bool startNow=false, int timer_delay=-1)
	Contructs thread with custom data "data", external function "func" and main cycle delay "timer_delay".
	PIThread (bool startNow=false, int timer_delay=-1)
	Contructs thread with main cycle delay "timer_delay".
void	setData (void *d)
	Set common data passed to external function.
void	setSlot (ThreadFunc func)
	Set external function that will be executed after every run()
void	setPriority (PIThread::Priority prior)
	Set priority of thread.
PIThread::Priority	priority () const
	Return priority of thread.
bool	isRunning () const
	Return true if thread is running.
void	needLockRun (bool need)
	Set necessity of lock every run with internal mutex.
PIMutex &	mutex ()
	Return internal mutex.
bool	start (int timer_delay)
	Start thread. More...
bool	start (ThreadFunc func, int timer_delay)
	Start thread. More...
bool	startOnce ()
	Start thread without internal loop. More...
bool	startOnce (ThreadFunc func)
	Start thread without internal loop. More...
void	stop (bool wait)
	Stop thread. More...
void	terminate ()
	Strongly stop thread. More...
bool	waitForStart (int timeout_msecs)
	Wait for thread start. More...
bool	waitForFinish (int timeout_msecs)
	Wait for thread finish. More...
void	lock ()
	Lock internal mutex.
void	unlock ()
	Unlock internal mutex.
void	started ()
	Raise on thread start.
void	stopped ()
	Raise on thread stop.
Public Member Functions inherited from PIObject
	PIObject (const PIString &name=PIString())
	Contructs PIObject with name "name".
PIString	name () const
	Returns object name.
virtual const char *	className () const
	Returns object class name.
bool	debug () const
	Return if debug of this object is active.
void	setName (const PIString &name)
	Set object name.
void	setDebug (bool debug)
	Set object debug active.
const PIMap< PIString, PIVariant > &	properties () const
	Returns properties of the object.
int	propertiesCount () const
	Returns properties count of the object.
PIVariant	property (const PIString &name) const
	Returns property with name "name".
void	setProperty (const PIString &name, const PIVariant &value)
	Set property with name "name" to "value". If there is no such property in object it will be added.
bool	isPropertyExists (const PIString &name) const
	Returns if property with name "name" exists.

Handlers
void	clearVariables (bool clearScreen)
	Remove all columns at current tab and if "clearScreen" clear the screen.
void	waitForFinish ()
	block until finished (exit key will be pressed)
void	start (bool wait)
	Start console output and if "wait" block until finished (exit key will be pressed)
void	stop (bool clear)
	Stop console output and if "clear" clear the screen.

Events
void	keyPressed (char key, void *data)
	Raise on key "key" pressed, "data" is pointer to PIConsole object.

Additional Inherited Members
Static Public Member Functions inherited from PIObject
static void	piDisconnect (PIObject *src, const PIString &sig)
	Disconnect object "src" from all connections with event name "sig".
static void	piDisconnect (PIObject *src)
	Disconnect object "src" from all connections, i.e. all connections where object "src" is emitter.
static PIObject *	findByName (const PIString &name)
	Returns PIObject* with name "name" or 0, if there is no object found.
Protected Member Functions inherited from PIThread
virtual void	end ()
	Function executed once at the end of thread.
Protected Member Functions inherited from PIObject
PIObject *	emitter () const
	Returns PIObject* which has raised an event. This value is correct only in definition of some event handler.
virtual void	propertyChanged (const PIString &name)
	Virtual function executes after property with name "name" has been changed.
Related Functions inherited from PIObject
#define	piCoutObj
	Macro used for conditional (piDebug and PIObject::debug()) output to PICout for subclasses of PIObject.
#define	PIOBJECT(name)
	you should use this macro after class declaration to use EVENT and EVENT_HANDLER and correct piCoutObj output
#define	EVENT_HANDLER0(ret, name)   ret name()
	declare event handler "event" with name "name" and return type "ret", ret name()
#define	EVENT_HANDLER1(ret, name, type0, var0)   ret name(type0 var0)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0)
#define	EVENT_HANDLER2(ret, name, type0, var0, type1, var1)   ret name(type0 var0, type1 var1)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1)
#define	EVENT_HANDLER3(ret, name, type0, var0, type1, var1, type2, var2)   ret name(type0 var0, type1 var1, type2 var2)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1, type2 var2)
#define	EVENT_HANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3)   ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	declare event handler "event" with name "name" and return type "ret", ret name(type0 var0, type1 var1, type2 var2, type3 var3)
#define	EVENT_HANDLER   EVENT_HANDLER0
	EVENT_HANDLER is synonym of EVENT_HANDLER0.
#define	EVENT_VHANDLER0(ret, name)   virtual ret name()
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name()
#define	EVENT_VHANDLER1(ret, name, type0, var0)   virtual ret name(type0 var0)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0)
#define	EVENT_VHANDLER2(ret, name, type0, var0, type1, var1)   virtual ret name(type0 var0, type1 var1)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1)
#define	EVENT_VHANDLER3(ret, name, type0, var0, type1, var1, type2, var2)   virtual ret name(type0 var0, type1 var1, type2 var2)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1, type2 var2)
#define	EVENT_VHANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3)   virtual ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	declare virtual event handler "event" with name "name" and return type "ret", virtual ret name(type0 var0, type1 var1, type2 var2, type3 var3)
#define	EVENT_VHANDLER   EVENT_VHANDLER0
	EVENT_VHANDLER is synonym of EVENT_VHANDLER0.
#define	EVENT0(name)   void name();
	declare event "event" with name "name", void name();
#define	EVENT1(name, type0, var0)   void name(type0 var0);
	declare event "event" with name "name", void name(type0 var0);
#define	EVENT2(name, type0, var0, type1, var1)   void name(type0 var0, type1 var1);
	declare event "event" with name "name", void name(type0 var0, type1 var1);
#define	EVENT3(name, type0, var0, type1, var1, type2, var2)   void name(type0 var0, type1 var1, type2 var2);
	declare event "event" with name "name", void name(type0 var0, type1 var1, type2 var2);
#define	EVENT4(name, type0, var0, type1, var1, type2, var2, type3, var3)   void name(type0 var0, type1 var1, type2 var2, type3 var3);
	declare event "event" with name "name", void name(type0 var0, type1 var1, type2 var2, type3 var3);
#define	EVENT   EVENT0
	EVENT is synonym of EVENT0.
#define	CONNECT0(ret, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists
#define	CONNECT1(ret, type0, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists
#define	CONNECT2(ret, type0, type1, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists
#define	CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists
#define	CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" with check of event and handler exists
#define	CONNECT   CONNECT0
	CONNECT is synonym of CONNECT0.
#define	WEAK_CONNECT0(ret, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists
#define	WEAK_CONNECT1(ret, type0, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists
#define	WEAK_CONNECT2(ret, type0, type1, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists
#define	WEAK_CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists
#define	WEAK_CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	connect event "event" from object "src" to event handler "handler" with return type "ret" from object "dest" without check of event exists
#define	WEAK_CONNECT   WEAK_CONNECT0
	WEAK_CONNECT is synonym of WEAK_CONNECT0.
#define	DISCONNECT0(ret, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"
#define	DISCONNECT1(ret, type0, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"
#define	DISCONNECT2(ret, type0, type1, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"
#define	DISCONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"
#define	DISCONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	piDisconnect event "event" from object "src" from event handler "handler" with return type "ret" from object "dest"
#define	DISCONNECT   DISCONNECT0
	DISCONNECT is synonym of DISCONNECT0.
#define	HANDLER(handler)
	Returns pointer to events handler "handler".

Detailed Description

Console output class.

Synopsis

This class provides output to console with automatic alignment and update. It supports tabs, keyboard listening, formats and colors.

Layout

PIConsole works with variable pointers. You should add your variables with functions addVariable() which receives label name, pointer to variable and optional column and format. Columns count is dynamically increased if new column used. E.g. if you add variable to empty tab to column 3, columns count will be increased to 3, but two firsts columns will be empty. Each column filled from top to bottom, but you can add just string with function addString() or add empty line with function addEmptyLine(). Layout scheme:

Keyboard usage

PIConsole should to be single in application. PIConsole aggregate PIKbdListener which grab keyboard and automatic switch tabs by theirs bind keys. If there is no tab binded to pressed key external function "slot" will be called

Member Enumeration Documentation

enum PIConsole::Format

Variables output format.

Enumerator
Normal	Default console format
Bold	Bold text
Underline	Underlined text
Blink	Blinked text
Inverse	Swap text and background colors
Black	Black text
Red	Red text
Green	Green text
Yellow	Yellow text
Blue	Blue text
Magenta	Magenta text
Cyan	Cyan text
White	White text
BackBlack	Black background
BackRed	Red background
BackGreen	Green background
BackYellow	Yellow background
BackBlue	Blue background
BackMagenta	Magenta background
BackCyan	Cyan background
BackWhite	White background
Dec	Decimal base for integers
Hex	Hexadecimal base for integers
Oct	Octal base for integers
Bin	Binary base for integers
Scientific	Scientific representation of floats
SystemTimeSplit	PISystemTime split representation (* s, * ns)
SystemTimeSeconds	PISystemTime seconds representation (*.* s)

enum PIConsole::Alignment

Column labels alignment.

Enumerator
Nothing	No alignment
Left	Labels align left and variables align left
Right	Labels align right and variables align left

Member Function Documentation

void PIConsole::addVariable	(	const PIString &	name,
		const PIProtocol *	ptr,
		int	col = 1,
		PIFlags< PIConsole::Format >	format = PIConsole::Normal
	)

Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".

This function add to column "column" next lines:

• "protocol <name>"
• "Rec - receiverDeviceName": PIProtocol::receiverDeviceState
• "Send - senderDeviceName": PIProtocol::senderDeviceState
• "Received count": PIProtocol::receiveCount
• "Invalid count": PIProtocol::wrongCount
• "Missed count": PIProtocol::missedCount
• "Sended count": PIProtocol::sendCount
• "Immediate Frequency, Hz": PIProtocol::immediateFrequency
• "Integral Frequency, Hz": PIProtocol::integralFrequency
• "Receive speed": PIProtocol::receiveSpeed
• "Send speed": PIProtocol::sendSpeed
• "Receiver history size": PIProtocol::receiverHistorySize
• "Sender history size": PIProtocol::senderHistorySize
• "Disconnect Timeout, s": PIProtocol::disconnectTimeout
• "Quality": PIProtocol::quality

void PIConsole::addVariable	(	const PIString &	name,
		const PIDiagnostics *	ptr,
		int	col = 1,
		PIFlags< PIConsole::Format >	format = PIConsole::Normal
	)

Add to current tab to column "column" variable with label "name", pointer "ptr" and format "format".

This function add to column "column" next lines:

• "<name> diagnostics"
• "Received count": PIDiagnostics::receiveCount
• "Invalid count": PIDiagnostics::wrongCount
• "Sended count": PIDiagnostics::sendCount
• "Immediate Frequency, Hz": PIDiagnostics::immediateFrequency
• "Integral Frequency, Hz": PIDiagnostics::integralFrequency
• "Receive speed": PIDiagnostics::receiveSpeed
• "Send speed": PIDiagnostics::sendSpeed
• "Quality": PIDiagnostics::quality
